Takex 200m External / 400m Internal Single Channel Quad Beam Detector PB-200F
SKU: PB-200F
The Takex 200m External / 400m Internal Single Channel Quad Beam Detector is the professional choice in outdoor protection.
Takex 200m External / 400m Internal Single Channel Quad Beam Detector PB-200F
The Takex 200m External / 400m Internal Single Channel Quad Beam Detector is the professional choice in outdoor protection. The Takex Quad beam detectors synchronise 16 beam paths for maximum stability in severe weather conditions, perfect for long range perimeter protection.
For distances up to 200m (660ft) outdoor / 400m (1320ft) indoor.
Features
- Synchronised Quad Beams for maximum stability in severe weather conditions
- Double Modulated beam for unsurpassed immunity to direct and reflected sunlight, vehicle headlights and other light sources.
- Built-in view finder and monitor jack output for easy beam alignment
- 180 degree rotating optics for increased installation flexibility
- Automatic Gain Control circuit
Specification
| Product type | Photoelectric Beam Sensor |
| Detection system | Simultaneous breaking of 4 beams |
| Infrared beam | LED pulsed beam, Double modulation |
| Protection distance | Outdoor 200m (660ft) or less Indoor 400m (1320ft) or less |
| Max. beam range | Outdoor 2000m (6600ft) or less Indoor 2000m (6600ft) or less |
| Response time | 50msec. |
| Supply voltage | 12V to 30VDC (Non-polarity) |
| Current consumption | 75mA or less |
| Alarm output | Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less |
| Tamper output | Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less |
| Alarm LED | Red LED (Receiver) ON : when an alarm is initiated. |
| Attenuation LED | Red LED (Receiver) ON : when beam is attenuated. |
| Functions | Sound check : Audible check of beam level Monitor jack output Frost proof cover |
| Ambient temperature range | -25°C to +55°C (-13°F to +131°F) |
| Mounting positions | Outdoor (Perimeter protection) |
| Wiring | Terminals |
| Weight | Transmitter : 1.3Kg (45.5oz) Receiver : 1.3Kg (45.5oz) |
| Appearance | PC resin (wine red) |
Related Products
Aico Surface Mounting Kit for 3000, 2110e, 160e and 140RC Series | EI127
SKU: EI127
£2.65
£2.21
Add to Cart
ESP MAGDUO Conventional 4 Zone Expansion Card | MAGDOUCC4
SKU: MAGDUOCC4
£120.00
£100.00
Add to Cart
Texecom Ricochet Premier Elite 64W-LIVE Wireless Alarm Kit | KIT-1003
SKU: KIT-1003
£257.38
£214.48
Add to Cart
Texecom Premier Elite Burglar Alarm System With Brass Flush Mount Keypad
SKU: KIT9-DBD0122
£419.47
£349.56
Add to Cart
Texecom Premier Elite LCDL Large Screen Remote Keypad | DBB-0001
SKU: DBB-0001
£96.65
£80.54
Add to Cart

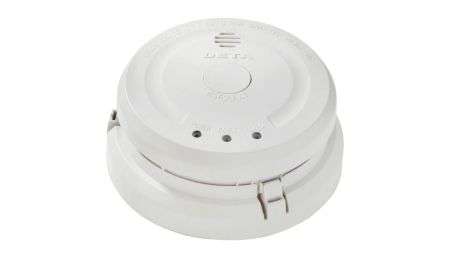

Deta Carbon Monoxide Alarm 240V with 9V Replaceable Battery | 1169
