GJD Dygizone Security Lighting Kit Satin Chrome Dygizone Keypad | GJD600C
SKU: GJD600C
A dygizone for the front and back doors, expansion unit and then 4 Opal XL PIRs to monitor the whole perimeter of the property. This can then be connected to a warning device of your choice, be that audible or visual
GJD Dygizone Security Lighting Kit Satin Chrome Dygizone Keypad | GJD600C
A dygizone for the front and back doors, expansion unit and then 4 Opal XL PIRs to monitor the whole perimeter of the property. This can then be connected to a warning device of your choice, be that audible or visual.
Features
- Precise 24 hour control and monitoring of 4 zones of security lighting via a user-friendly control panel and modern LCD display.
- Programmable functions that accurately control the activation, timing and duration of the lighting to minimise energy consumption and light pollution.
- Any one of 5 mode settings can be programmed for each zone.
- When the external GJD sensors are activated, the DygiZone indicates which Zone has been activated by either an audible beep or a 10 second pre-recordable voice message - and the Zone indicator is illuminated on the control panel.
- 2 programmable timers for each zone allows the lighting to be automatically switched on & off at pre-set periods for a pre-set time - ideal for when a building or premises are unoccupied.
- A system overide can be made from up to 3 locations at any time.
- The system can be expanded to enable up to a 30,000 Watts of lighting to be controlled and switched as required.
Contents
GJD600C
- GJD910 x 2
- GJD020 x 4
- GJD040 x 1
Specification
Supply | 12 VDC @ 20 mA standby. 100 mA triggered with message playback. |
Display | Back lit blue LCD display showing real time clock, detector activation and zone status. |
Audible | Internal warning tone. Individual tones for each zone or selectable 10 second voice recordable message for each zone. |
Control | Four individual zone buttons for selecting zone status and programming options. |
System configuration | Normally 1 Master and 1 Slave DygiZone. One additional Slave can be added if required. Requires GJD Expansion Units. |
Time control | Two individual on/off timers per zone. |
Mounting | Indoor use only. Mount in a clean dry location. Can be mounted on a standard single or double flush backbox. |
Temperature | -10 to +55 degrees Centigrade. |
Dimensions | 134 (W) x 87 (H) x 30 (D) mm |
Weight | 190g NET, 260g, GROSS |
Loading...
Related Products

Spa Pegasi G9 Ingot 1 Light IP44 Bathroom Wall Light | SPA-33932-CHR
SKU: SPA-33932-CHR
£37.64
£31.37
Add to Cart

Lutec Tango 17w LED Up & Down Wall Light Anthracite Grey and Glass | 5192901118
SKU: 5192901118
£28.34
£23.62
Add to Cart

Kosnic Retrofit 7w LED R63 E27/ES Reflector Lamp Warm White | R6307/E27-W27
SKU: R6307/E27-W27
£6.90
£5.75
Add to Cart

Forum Zinc Leto ZN-26536-COP Adjustable IP65 Wall Light Copper
SKU: ZN-26536-COP
£11.34
£9.45
Add to Cart

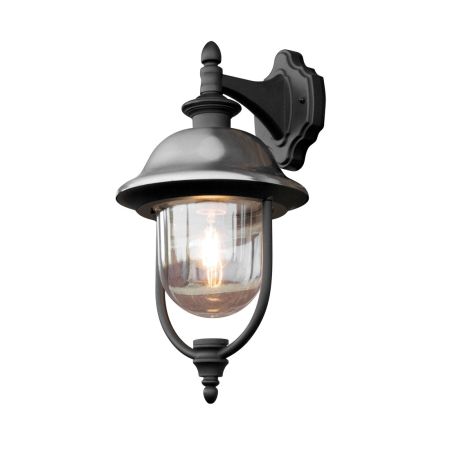

Konstsmide 7240-000 Parma Outdoor Down Lantern Wall Light Black
SKU: 7240-000
£58.56
£48.80
Add to Cart

Culina Konect 35mm Round Recessed Plinth Light Aluminium 4000k Cul-37792
SKU: CUL-37792
£5.94
£4.95
Add to Cart

Knightsbridge SpektroLED Evo Fixed Fire Rated IP65 CCT & Wattage LED Downlight | SPKEVF
SKU: SPKEVF
£11.14
£9.28
Add to Cart

Lutec Connected Light Kira 19w LED Wall Light | 5288909118
SKU: 5288909118
£37.67
£31.39
Add to Cart

Ener-j 6w Recessed Round Led Mini Panel 120mm Diameter 3000k | E304
SKU: E304
£2.70
£2.25
Add to Cart

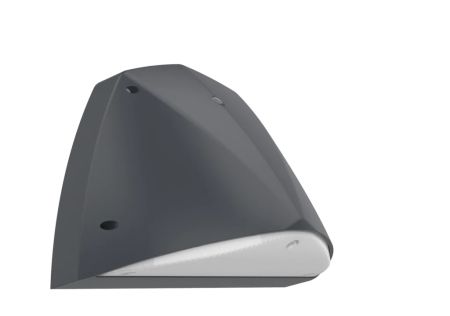

Kosnic Odin Low Glare Dusk to Dawn Sensor IP65 Wall Pack 14-24W CCT Switchable Grey | ODI24-SCT-GRY/DS
